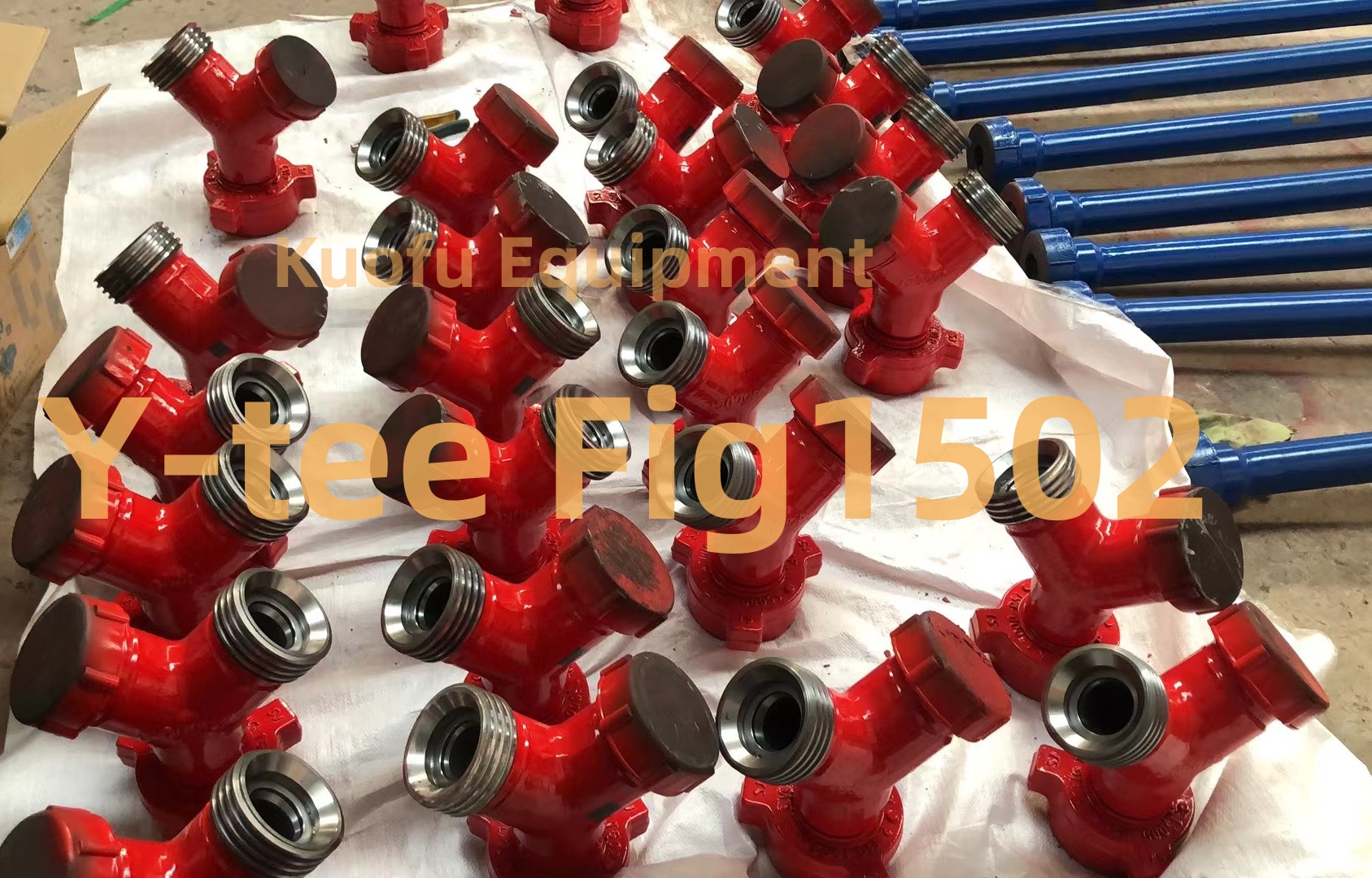

Fig 1502 Tee
Kuofu Provide API 16C Integral Fittings
Size: 2", 3" 4"
Working Pressure: 6,000Psi - 20,000 Psi (42MPa-140MPa)
Ends: thread connection or hammer union
Integral fittings are cementing and fracturing equipment High Pressure Fluid Control Products. Widely used in the acidic operating environment (excluding containing CO2, H2S sour gas operating environment) in the high-pressure discharge line, input line, a temporary flow line, well testing, and other high-voltage transmission lines on pipelines.
Integral fittings technical parameters and performance specifications are in line with API 6A. Its product specification level PLS3, performance levels for the PR2, it can work with SPM's similar products interchangeable.
Common Models for Integral Fittings
| Production name | buckling size | working environment | Buckle model |
| long sweep elbow |
2" 3" |
42Mpa(6000psi) 70Mpa(10000psi) 105Mpa(15000psi) |
F×M、M×M、F×F、Welding type |
| right angle elbow | |||
| Tee | FMF、FMM、FFM、FMF、MMM、FFF、Welded fitting | ||
| Y-tee | MFF、Welded fitting | ||
| manifold tee | MFF、FFF、Welded fitting | ||
| cross tee | FFFF、FFMF、FFMM、FMMM、FMMF、MMMM、Welded fitting | ||
| manifold cross | MFFF | ||
| integral fitting |
2" ×3" 2" ×4" 3" ×4" |
Terminal connection type: fig602-fig1002 fig602-fig1502 fig1002-fig1502 |
Adapter: F×M、F×F、M×F、B×F、 M×P、flange fitting×union、Welded fitting |
|
Remark: ① Each terminal end of Integral fittings can be customized in size (reducing nipple) ② “F”-threaded joint, “M”-sphere joint, “B”-Internal thread, “P”-male thread ③ How to place an order: cross tee-3"×105Mpa(15000psi) - FFMM |
|||
