XBSY SB Centrifugal sand pump
Description
Kuofu Equipment Provide XBSY SB Centrifugal sand pump are supplementary pumps, newly designed and manufactured according to features of petroleum and natural gas drilling equipment. The pumps are applicable to deliver corrosive drilling fluid (with suspended particulates) or other liquid media under similar work condition, and are optional pumps for desander, desliter and mix hoppers as well as perfect perfusion pumps of mud pumps. We have more than 80 models of SB6x8, SB5X6, SB4X5, SB3X4, and SB2X3,matching with electrical motors 7.5kw, 11kw, 15kw, 22kw, 30kw, 37kw, 45kw, 55kw, 75kw. . The pumps have two structures of direct connection and belt connection which are suitable for power grids of 50Hz and 60Hz. They also have metric and british systems and clockwise and anticlockwise directions.
Solids Control Equipment Sand Pump Features:
1. No leakage
Use combined seal rely mainly on mechanical seal while packing subsidiary. The mechanical seal is designed by our company with patent ZL200720079857.2.
2. High efficiency
Impeller and case have a streamlined design.
Long service life
The flow parts are made of high wearable cast iron.
3. No jam
The impeller has wide flow pass.
4. Beautiful appearance
The structure, which has certificate of design patent, is compact and beautiful. (Patent NO.ZL200730094452.1)

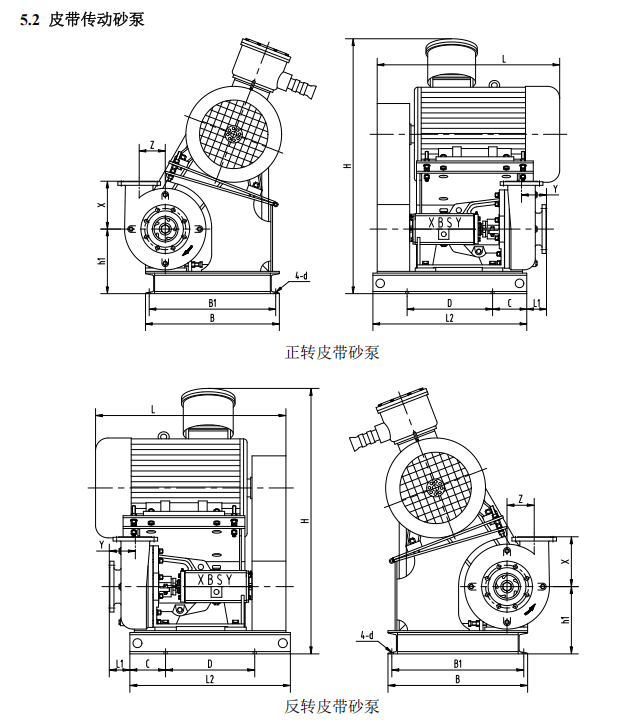

Belts-driven sand pump

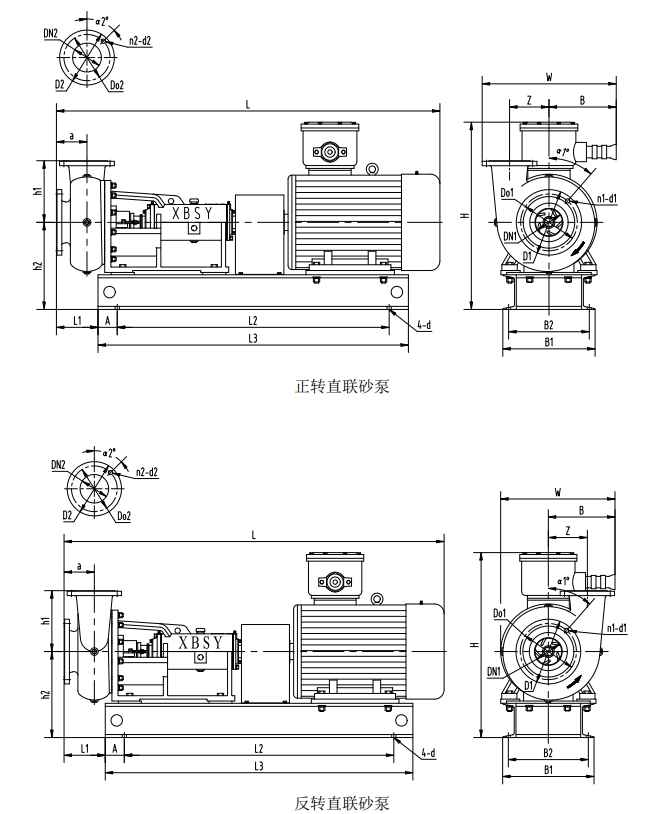

Direct connection drive sand pump
XBSY SB Centrifugal Mud Pump Applications:
. Desanding and Desilting
. Mud Processing
. Water Well Drilling
. Industrial Transfer Pumping
. Saltwater Disposal and Water Flooding
. Barite & mineral oil-based drilling mud,
. Bentonite, salt water, slurry, chemical industry
XBSY SB Centrifugal Pump Perfromence Sheet:
| Model | Flow (m3/h) | Head (m) | Rotational Speed(rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L*W*H (mm) | ||
| 50 Hz | 60 Hz | Shaft Power | Motor Power | ||||||
| SB6x8J – 13 | 240 | 37 | 1480 | 1780 | 67 | 36 | 75 | 1130 | 2056x698x1022 |
| SB6x8J-12½ | 200 | 36 | 1480 | 1780 | 66 | 29.7 | 55 | 1000 | 1996x698x972 |
| SB6x8J – 12 | 200 | 33 | 1480 | 1780 | 64 | 28 | 45 | 850 | 1916x638x917 |
| SB5x6J-12½ | 200 | 33 | 1480 | 1780 | 64 | 28 | 45 | 785 | 1806×528 x884 |
| SB5x6J – 12 | 180 | 31 | 1480 | 1780 | 63 | 24.1 | 37 | 760 | 1781x528x864 |
| SB5x6J-11½ | 160 | 28 | 1470 | 1780 | 62 | 19.7 | 30 | 650 | 1746x528x844 |
| SB5x6J – 11 | 140 | 22 | 1470 | 1780 | 62 | 13.5 | 22 | 545 | 1686x516x764 |
| SB4x5J – 10 | 150 | 25 | 1470 | 1780 | 61 | 16.8 | 22 | 480 | 1600x510x705 |
| SB4x5J – 9 | 93 | 20 | 1460 | 1760 | 58 | 8.8 | 15 | 400 | 1533x510x725 |
| SB3x4J – 10 | 85 | 26 | 1460 | 1760 | 61 | 9.9 | 15 | 360 | 1405x443x682 |
| SB3x4J-9½ | 80 | 23 | 1460 | 1760 | 61 | 8.2 | 11 | 340 | 1365x443x682 |
| SB3x4J – 9 | 54 | 18 | 1440 | 1750 | 60 | 4.4 | 7.5 | 290 | 1245x443x650 |
| SB2x3J – 10 | 55 | 22 | 1460 | 1760 | 60 | 5.5 | 11 | 320 | 1352x446x682 |
| SB2x3J – 9 | 50 | 18 | 1440 | 1750 | 56 | 4.4 | 7.5 | 260 | 1232x446x650 |
| SB2x3J – 8 | 40 | 16 | 1440 | 1750 | 54 | 3.2 | 5.5 | 245 | 1192x446x650 |
| SB2x3J-7½ | 25 | 11 | 1440 | 1750 | 50 | 1.5 | 4 | 223 | 1161x446x600 |
